Micro Expanded Metal
Micro Expanded Metal Specification
SWM LWM Strand Thick Strand Width Width Material Min  Qty
0.50mm 0.70mm 0.05mm 0.10-0.15mm 70-100mm 304/316 10m2
 0.60mm 0.80mm  0.08-0.10mm   0.15-0.20mm  100-200mm  304/316  10m2
 0.70mm  1.00mm  0.10-0.15mm  0.15-0.20mm  100-200mm  304/316  10m2
 0.70mm  1.25mm  0.10-0.20mm  0.15-0.25mm  100-250mm  304/316  10m2
 0.90mm  1.50mm  0.10-0.30mm  0.20-.30mm  100-300mm  304/316 10m2
 0.90mm  1.50mm  0.20-0.40mm  0.20-0.40mm 100-300mm  Aluminium   10m2
 1.00mm  2.00mm  0.15-0.40mm  0.15-0.5mm  150-300mm  304/316  10m2
 1.40mm  2.00mm  0.15-0.50mm  0.15-0.50mm  150-500mm  304/316 10m2
 1.50mm  2.50mm  0.20-0.50mm  0.20-0.50mm  150-500mm  304/316  10m2
 2.00mm  3.00mm  0.20-0.60mm  0.20-0.60mm  150-600mm  304/316  10m2
 2.20mm  3.00mm  0.20-0.60mm  0.20-0.60mm  150-600mm  304/316  10m2
 2.40mm  3.00mm  0.20-0.60mm  0.20-0.60mm   150-600mm 304/316   10m2
 2.40mm  3.50mm 0.20-0.60mm   0.20-0.60mm  150-600mm  304/316  10m2
 2.40mm  4.00mm 0.20-0.60mm   0.20-0.60mm  150-600mm  304/316 10m2
 3.00mm  5.00mm 0.20-0.60mm  0.20-0.60mm   150-600mm  304/316  10m2
 3.00mm  6.00mm 0.20-0.60mm   0.20-0.60mm  150-600mm 304/316   10m2
 4.00mm  6.00mm  0.20-0.60mm  0.20-0.60mm  150-600mm 304/316   10m2
 4.00mm  8.00mm  0.20-0.60mm  0.20-0.60mm  150-600mm 304/316  10m2
 5.00mm  10.00mm  0.20-0.60mm  0.20-0.60mm 150-600mm   304/316 10m2
 7.00mm  12.50mm  0.20-0.60mm  0.20-0.60mm 150-600mm   304/316  10m2
 8.00mm  16.00mm 0.20-0.60mm   0.20-0.60mm  150-600mm  304/316 10m2
 10.00mm  20.00mm  0.20-0.60mm  0.20-0.60mm  150-600mm  304/316 10m2

The Micro Expanded Metal is applicable to water pump,valve,sanitary ware,petroleum,chemical,pharmaceutical,environmental protection,electronics,crafts,mine screen,paper,mechanical,hydraulic,protection,filtration,marine,aviation,aerospace,daily necessities and other departments and high-tech research fields.

Material: SUS/AISI 304/316,304L,316L,Titanium,Nickel plates and so on.

Hope Shape: Triangle,Diamond,Hexagonal,Fish scale

Inquire the quality Micro Expanded Metal,Titanium Micro Expanded Metal,Nickel Micro Expanded Metal,please send e-mail: info@myexpandedmetal.com
Product Show
Micro Mesh

Micro Mesh

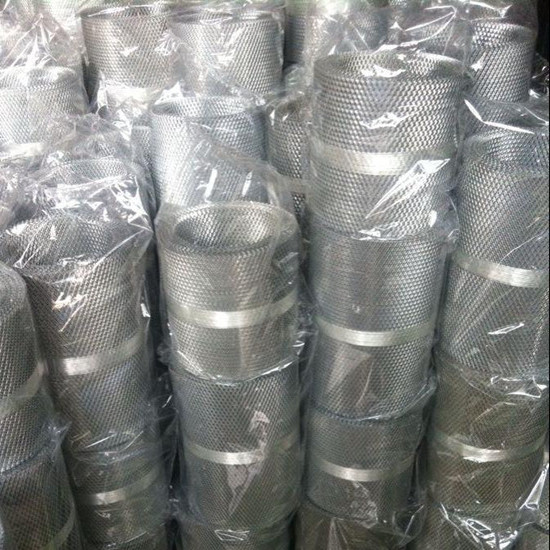

 Micro Expanded Metals

This is a high precision Expanded Metals,the holes even smaller than the Fine Expanded Metals,and the plate thickness much thinner.It is applicable to water pump,valve,sanitary ware,petroleum,chemical,pharmaceutical,environmental protection,electronics,crafts,min...
More>>

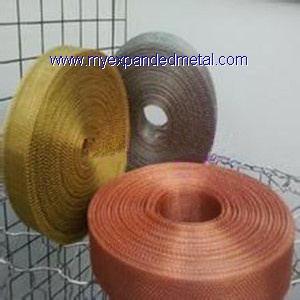

Copper Expanded Metal Electrode

Copper Expanded Metal Electrode

 Copper Expanded Metal Mesh for Electrode & Battery|Copper Foil Expanded Mesh

Copper Expanded Metal Mesh Electrode characteristics: a non-magnetic, wear-resistant, acid and alkali, good ductility, good sound insulation, filter electron beam, etc.

Quality C...
More>>

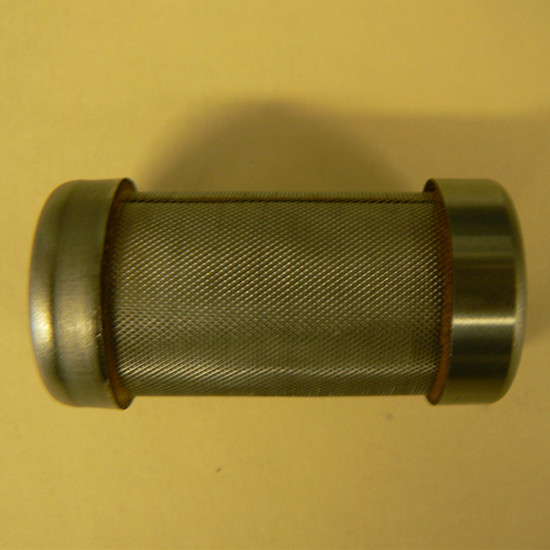

Micro Expanded Metal Filter

Micro Expanded Metal Filter

 Micro Expanded Metals Filter

We can produce kinds of Micro Expanded Metals Filter with our Expanded Metals,such as Expanded Metal Filter Cartridge,Expanded Metal Filter Package,Expanded Metal Disc,Expanded Metal Mesh Cylinder,Expanded Metal Filter Strainer and other Expanded...
More>>

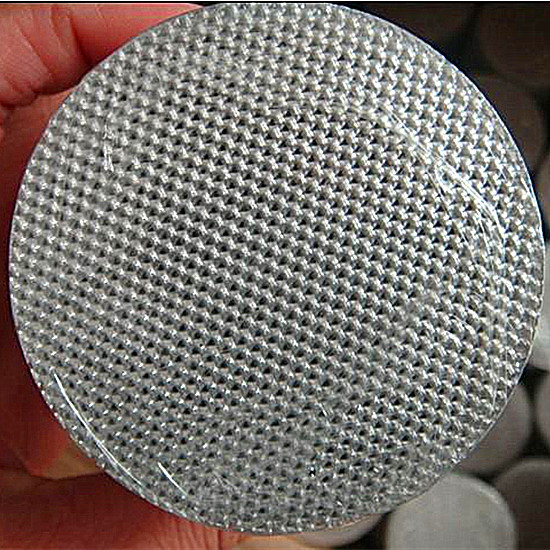

Micro Expanded Metal Disc

Micro Expanded Metal Disc

 Micro Expanded Metal Disc

We make Micro Expanded Metal Discs of Galvanized Expanded Metals,Stainless Steel Expanded Metals,Aluminium Expanded Metals,Copper Expanded Metals and Titanium Expanded Metals. It can be single layer or multilayer discs,also can be assembled with different mes...
More>>
